    QV-band Waveguide Triplexer

      QV-band Waveguide Triplexer

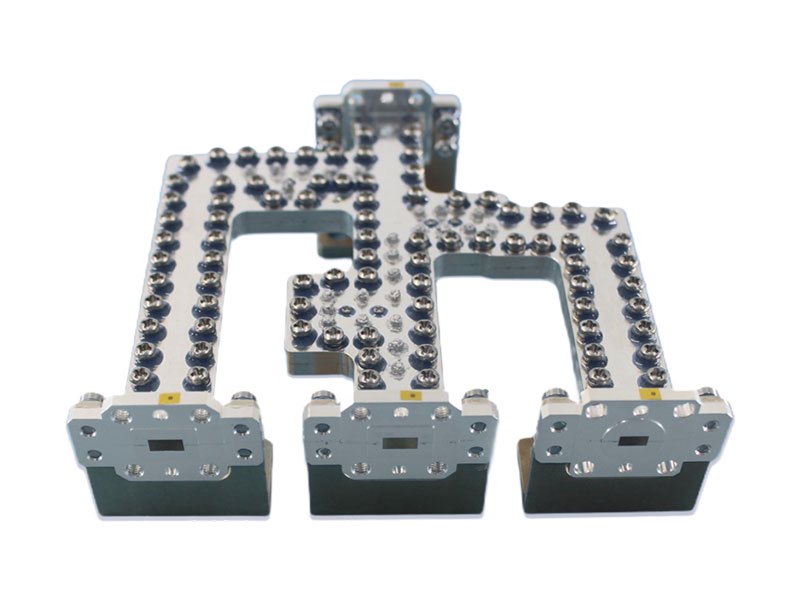

      QV-band waveguide triplexer is a wideband triplexer operating in the QV-band. The insertion loss of all three channels is less than 0.8 dB, the port VSWR is less than 1.3, and the in-band loss ripple is less than 0.3 dB. Both input and output ports adopt WR22 waveguide interface. The product features a compact overall design, and the positions of output ports can be partially adjusted according to requirements.
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    QV-band waveguide triplexer is a wideband triplexer operating in the QV-band. The insertion loss of all three channels is less than 0.8 dB, the port VSWR is less than 1.3, and the in-band loss ripple is less than 0.3 dB. Both input and output ports adopt WR22 waveguide interface. The product features a compact overall design, and the positions of output ports can be partially adjusted according to requirements.

    Technical Specifications

    Parameters

    Min.

    Typ.

    Max.

    Units

    Center Frequency

    CH1:38.X   CH2:40.XX   CH3:47.X

    GHz

    Bandwidth

    CH1:1.4   CH2:0.32   CH3:0.2

    GHz

    Insertion Loss

    0.9

    dB

    Mutual  isolation

    60

    dB

    VSWR

    1.3:1

    Input Power

    50

    W

    Operating Temperature Range

    -35

    +70

    ˚C

    Main Body Material

    Aluminum Alloy

    Surface Treatment

    Sliver Plating

    Size

    104*88*25.5

    mm
