    Slot Antennas

    Ka-band slot Antenna

      Ka-band slot Antenna

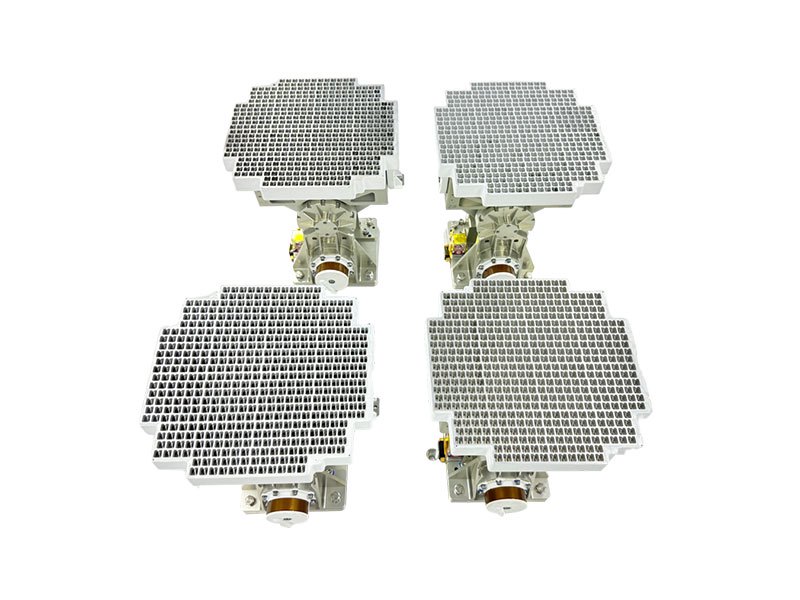

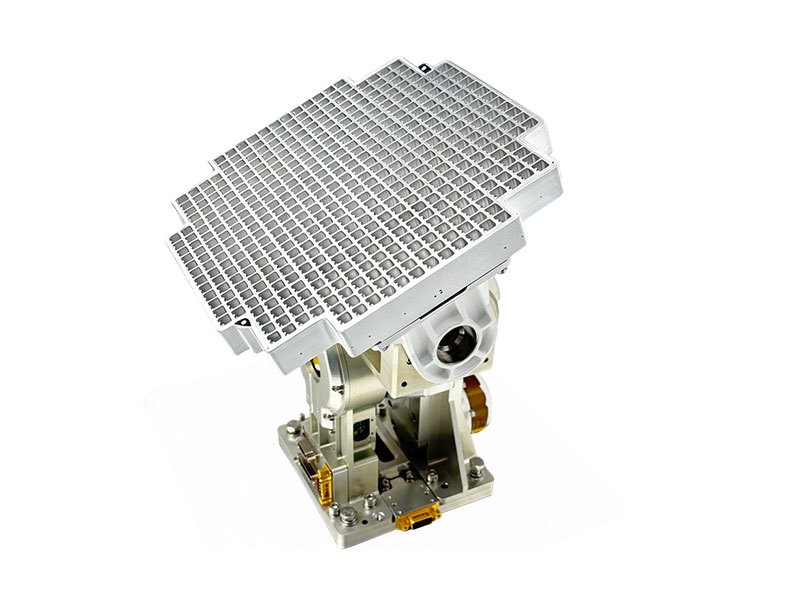

      The Ka-band Slot Antenna consists of a slotted waveguide array antenna and a servo controller. The antenna radiation frequency band is 32.3–33 GHz. It supports the transmission and reception of left-hand circularly polarized (LHCP) signals. The antenna gain is greater than 35 dBi, and the axial ratio is less than 3 dB. The product features a compact structure and can achieve 2D mechanical scanning.
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    The Ka-band Slot Antenna consists of a slotted waveguide array antenna and a servo controller. The antenna radiation frequency band is 32.3–33 GHz. It supports the transmission and reception of left-hand circularly polarized (LHCP) signals. The antenna gain is greater than 35 dBi, and the axial ratio is less than 3 dB. The product features a compact structure and can achieve 2D mechanical scanning.

    Technical Specifications

    Parameters

    Antenna

    Units

    Frequency Range

    32.3 – 33

    GHz

    VSWR

    ≤ 1.5

    /

    Gain

    ≥ 35

    dBi

    Axial Ratio

    ≤ 3

    dB

    Polarization

    RHCP

    /

    Element Dimensions

    Locked: 195 × 215.6 × 197.5

    Extended: 195 × 237 × 197.5

    mm

    Weight

    4.45

    kg

    Pointing Accuracy

    ≤0.1

    deg

    Tracking Angle

    ±80

    deg

    Port Connector

    BJ320

    /
