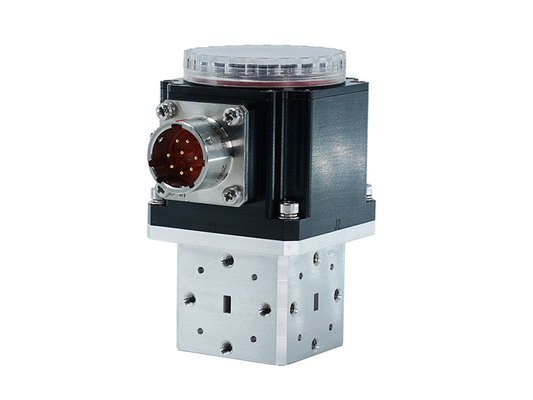

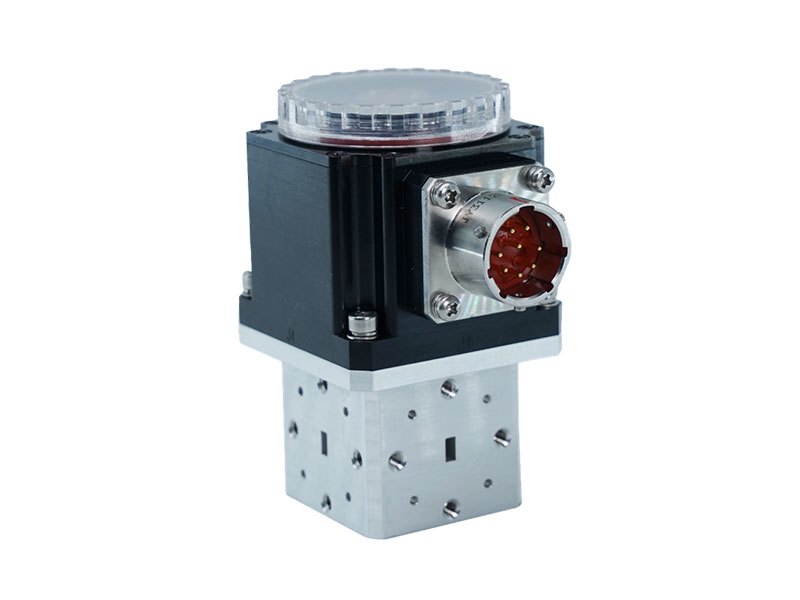

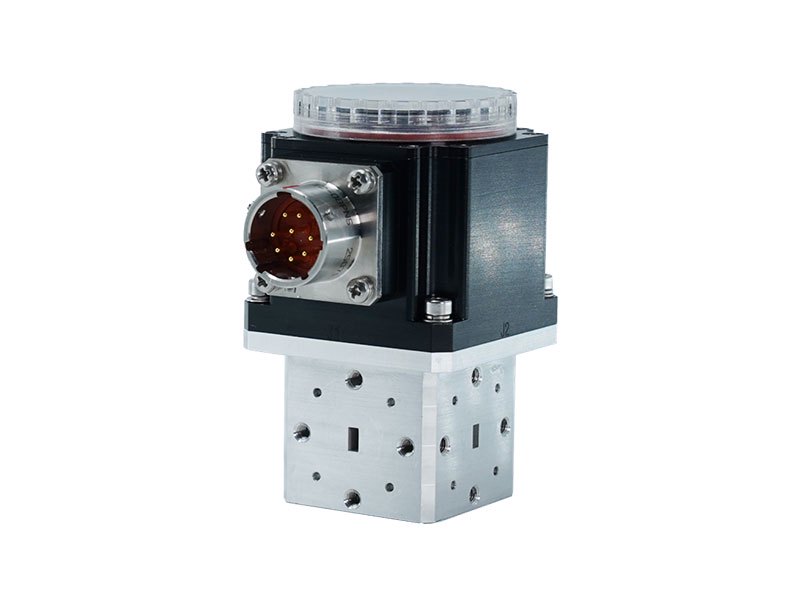

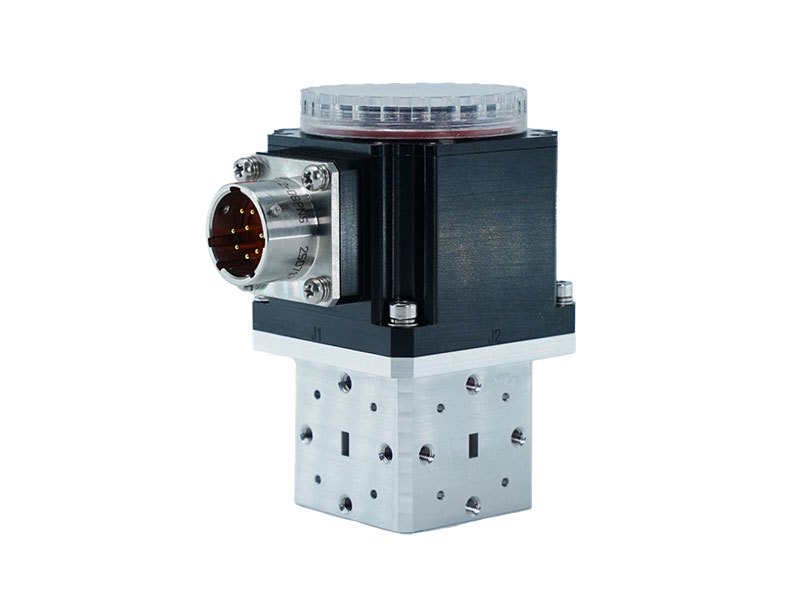

    WR19 Waveguide C-Type Switch

      WR19 Waveguide C-Type Switch

      The WR19 waveguide C-type switch is an electromechanical microwave switch based on rectangular waveguide. It enables switching of one input signal between two output channels in the V-band. As a high-performance, high-value signal routing subsystem, it operates within the frequency range of 39 GHz~59 GHz.The product features insertion loss is less than 0.2 dB, VSWR is less than 1.2, and isolation of greater than 70 dB. It adopts the FBP500 waveguide flange as its RF interface.
    • Share：
      • Contact us Inquiry Download
    • E-mail：sylvialee@mwglobe.com ，sales@mwglobe.com

    Description

    The WR19 waveguide C-type switch is an electromechanical microwave switch based on rectangular waveguide. It enables switching of one input signal between two output channels in the V-band. As a high-performance, high-value signal routing subsystem, it operates within the frequency range of 39 GHz~59 GHz.The product features insertion loss is less than 0.2 dB, VSWR is less than 1.2, and isolation of greater than 70 dB. It adopts the FBP500 waveguide flange as its RF interface.

    Technical Specifications

    Parameters

    Min.

    Typ.

    Max.

    Units

    Frequency Range

    39

    59

    GHz

    Insertion Loss

    0.2

    dB

    VSWR Output

    1.2

    Isolation

    70

    dB

    Operating Temperature Range

    -55

    +85

    ˚C

    Weight

    0.45

    Kg

    Item

    Specification

    Drive Type

    High-level pulse signal

    Latching Method

    Self-latching (auto power-off after actuation)

    Rated Voltage

    28 V

    Operating Current

    ≤ 0.8 A

    Switching Time

    ≤ 50 ms

    Low-Frequency Connector

    JY3112E12-08PNS

    Lifetime

    200,000 operations

    Ingress Protection

    IP65
